OUR ACCESSIBILITY PRODUCTS CATALOGUE

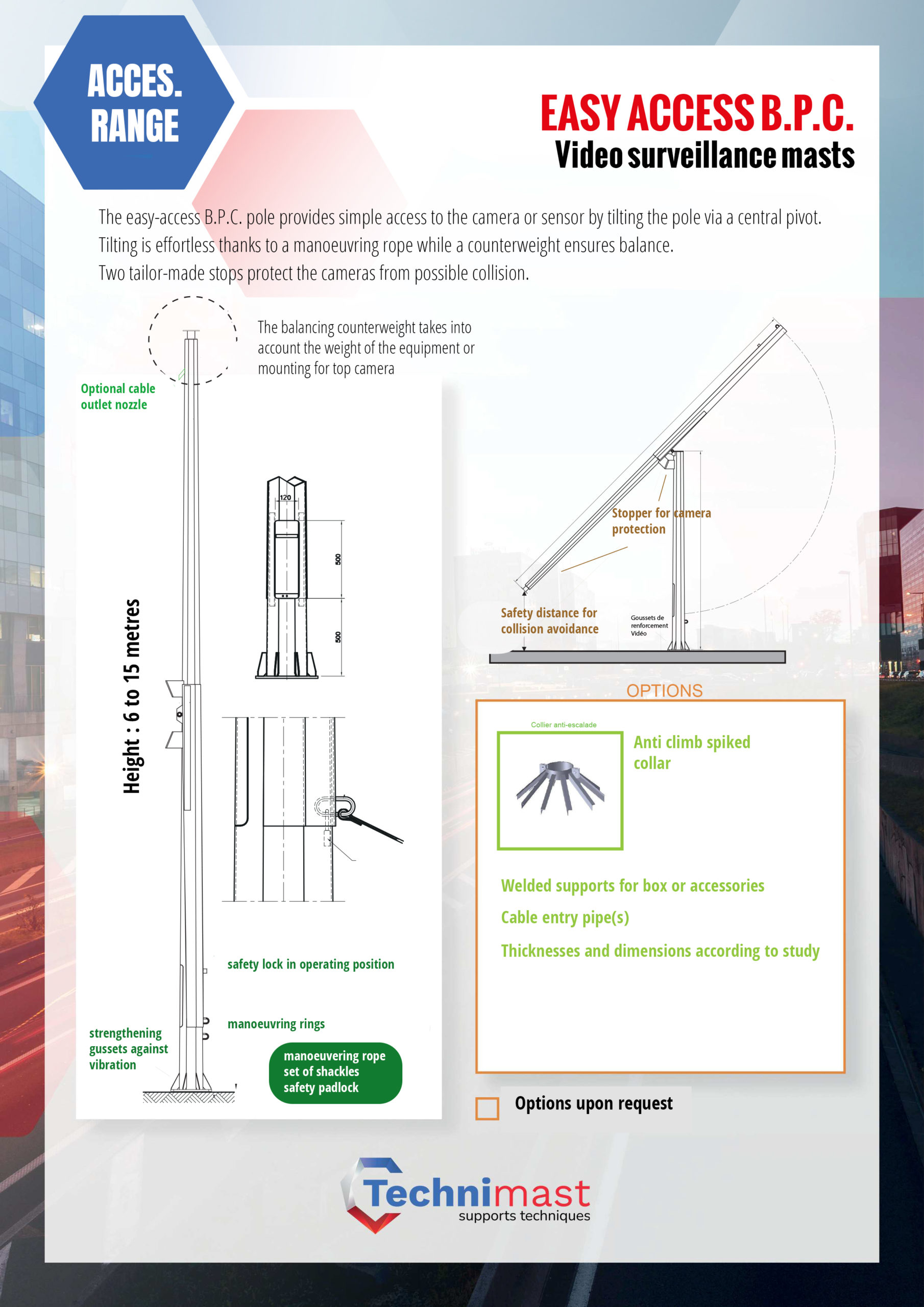

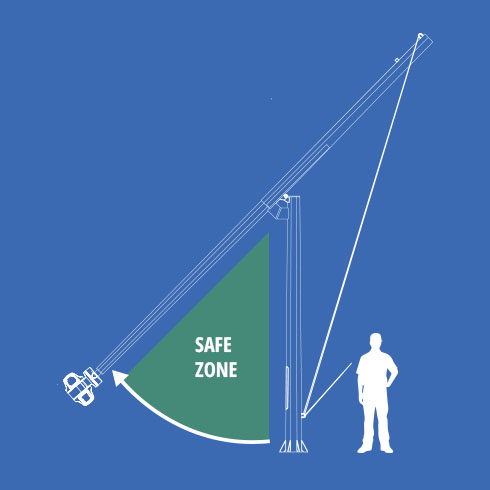

« EASY ACCESS BPC » TILTING MAST
– 6 to 15m mast, tilting with central pivot, to access the camera without a platform
– Can be operated by rope or manual winch
– Compliance with camera stability constraints
– The mast’s folding section is factory calibrated according to the weight of the cameras

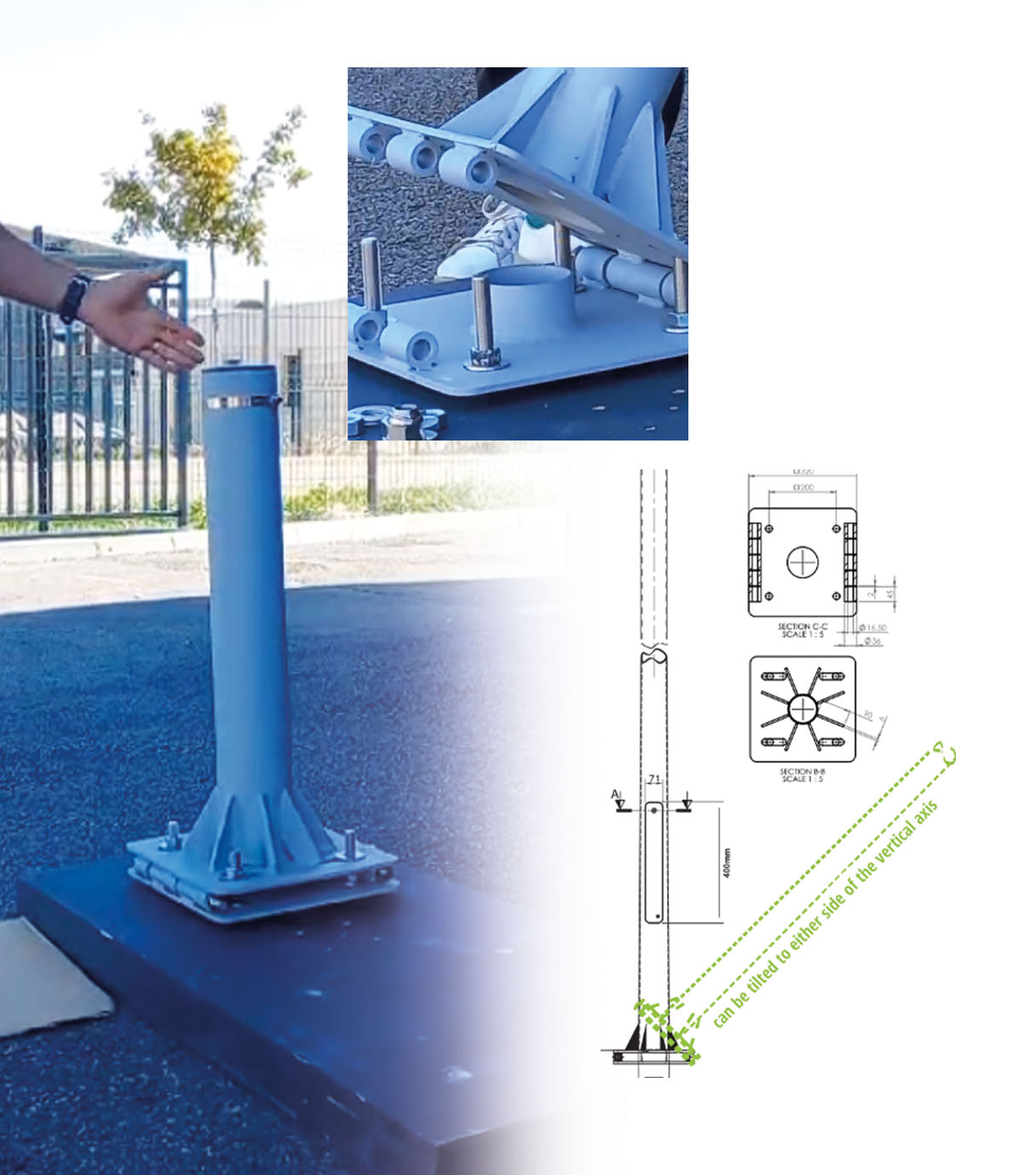

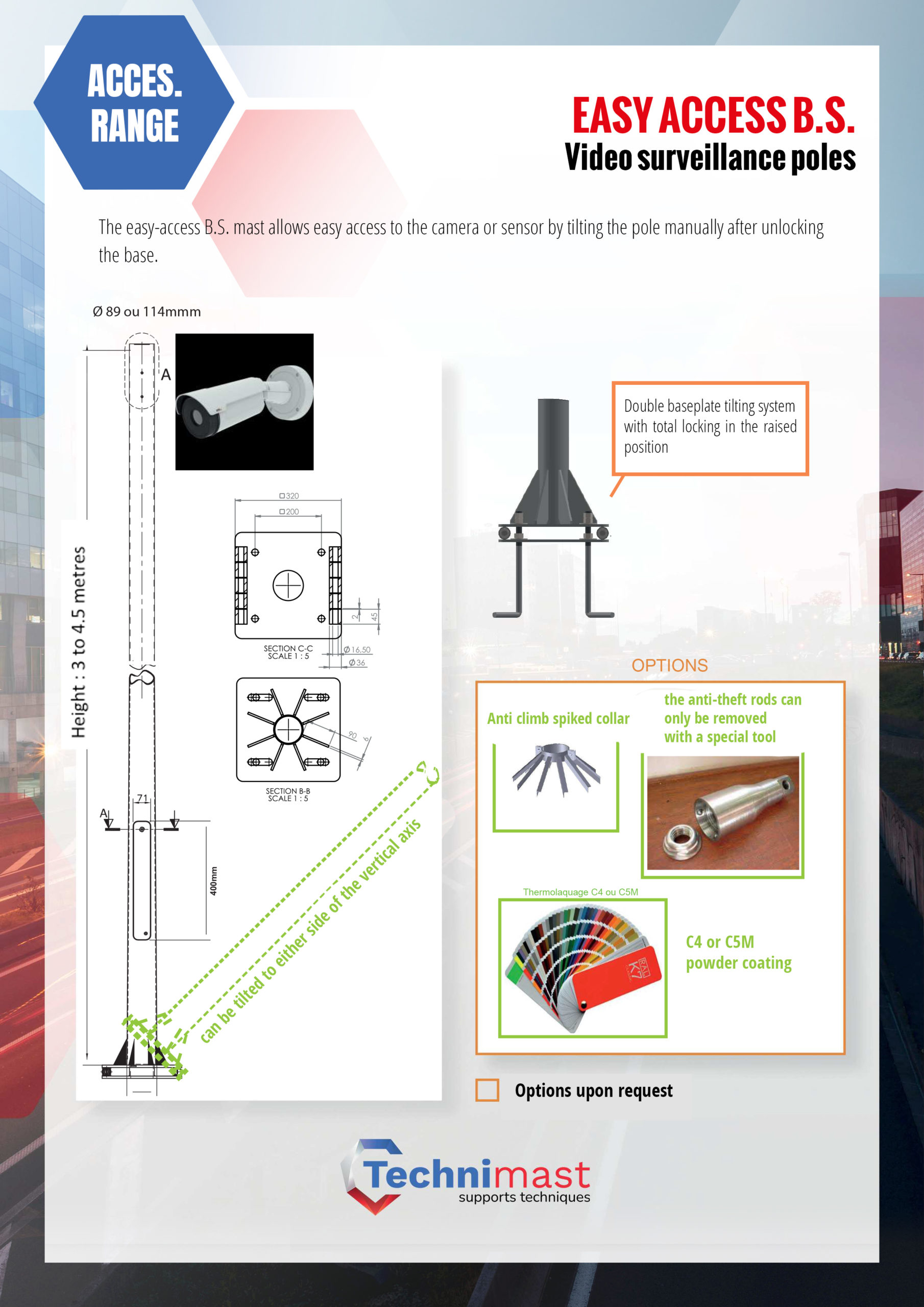

« EASY ACCESS BS » TILTING MAST WITH DOUBLE BASE-PLATE
– 3 to 4.5 m mast, tilting at the base after unlocking the plate
– Double baseplate tilting system with total locking by AUTOBLOCK device in the raised
position
– Compliance with camera stability constraints
– Sensor maintenance is totally safe, without the need for an aerial platform

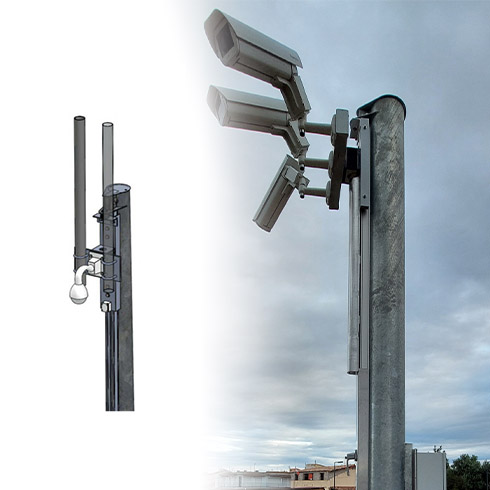

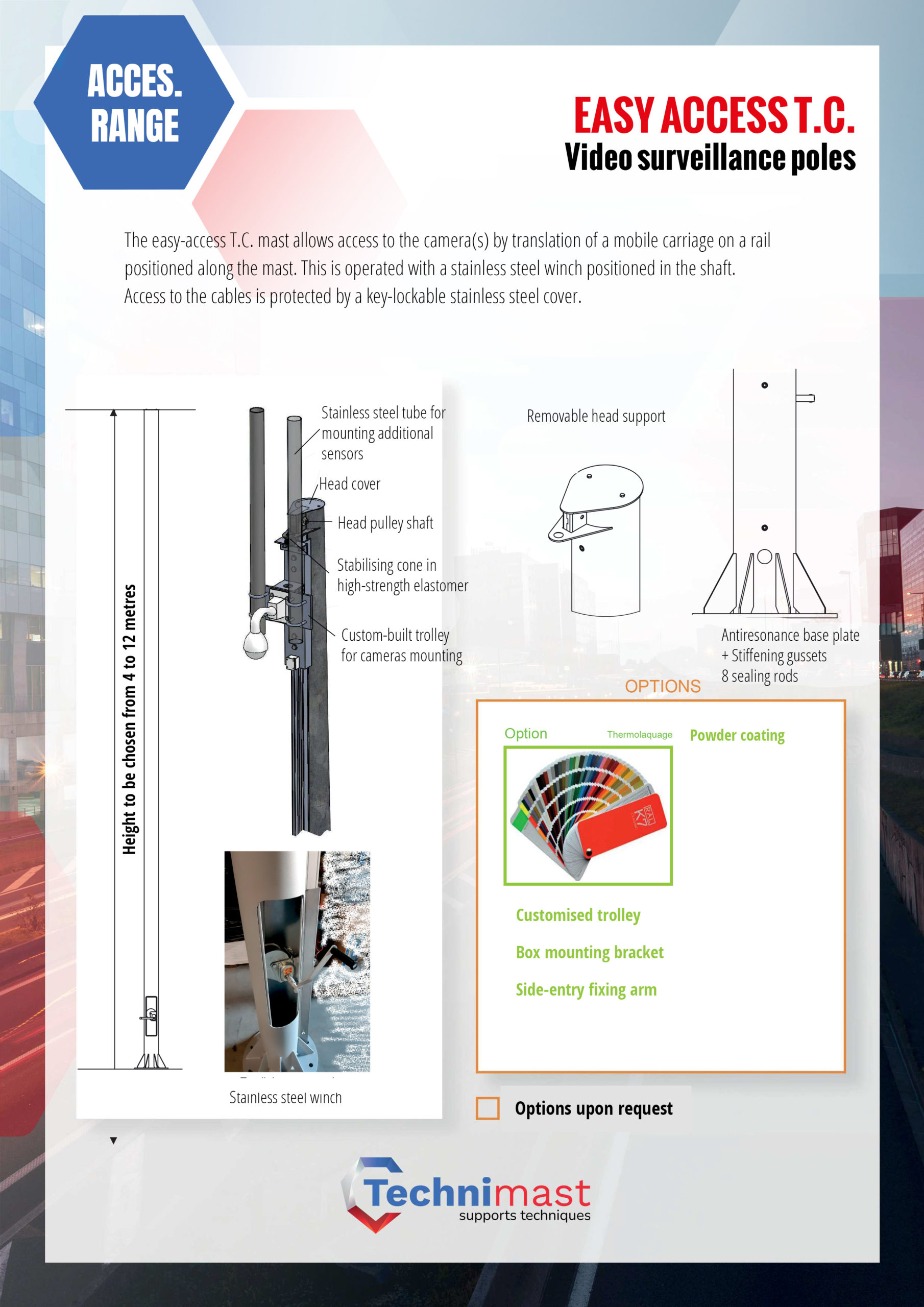

« EASY ACCESS TC » MAST WITH SLIDING CROSSBAR
– 4 to 10 metre-high tubular mast, and up to 15 metre-high for the polygonal mast
– Profiled lowering rail to slide the masthead down to the base
– Customised mobile trolley adapted to one or more sensors
– Stainless steel manual winch inside the shaft
– Sensor maintenance can be carried out safely without the need for an aerial platform

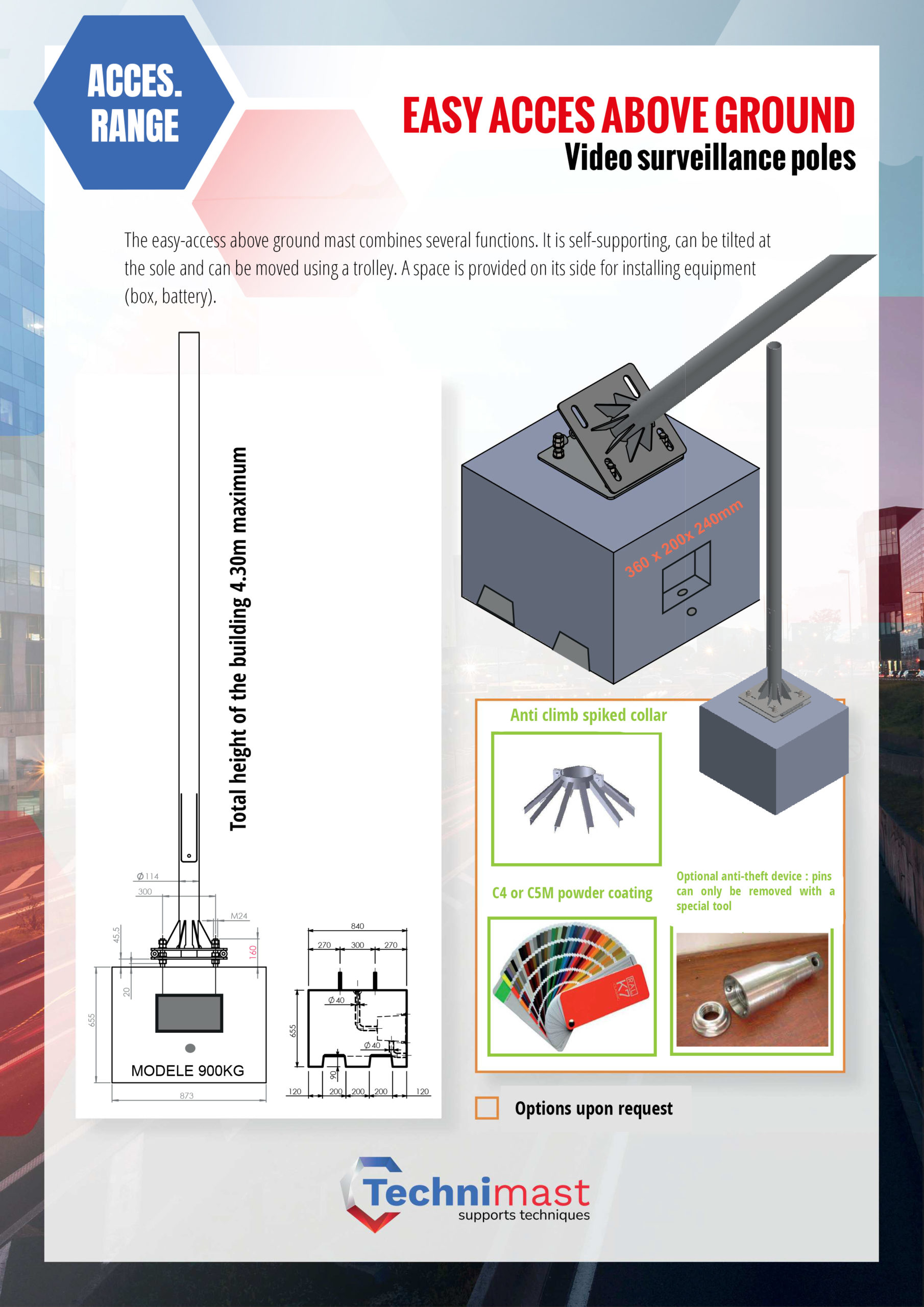

« EASY ACCESS » ABOVE-GROUND TILTING MAST
– Up to 4.30 metre high freestanding mast
– Concrete block can be manoeuvred directly with a forklift or pallet truck (900 kg)
– Double baseplate tilting system with total locking by AUTOBLOCK device in the raised
position
– Stability adapted to camera constraints

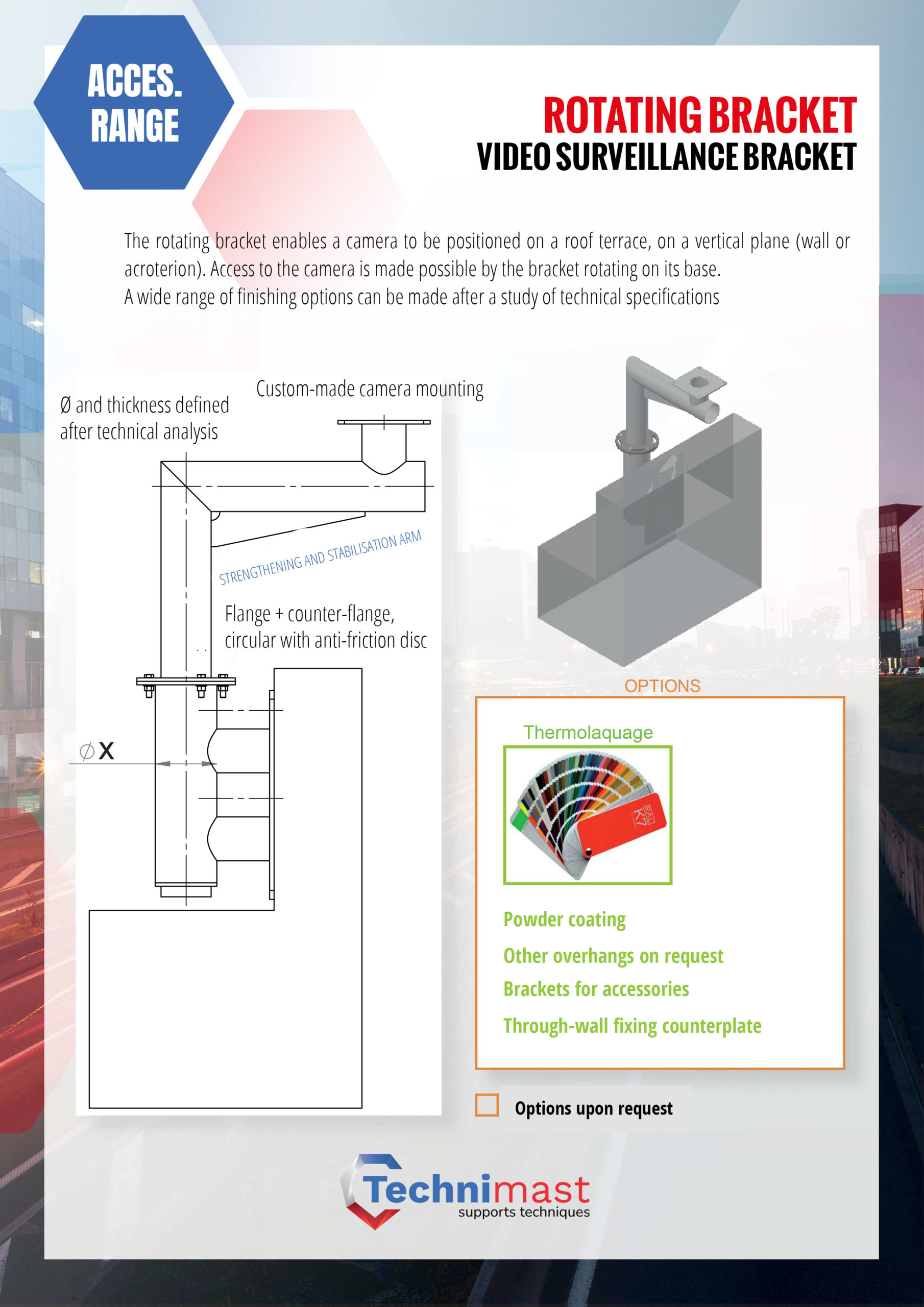

ROTATING BRACKET FOR FLAT ROOF
– Different heights and overhangs possible after technical analysis
– Finishing on demand: camera bracket or other sensors
– Stability adapted to camera constraints
– PTFE spacer to improve rotation
CAMERA MOUNT FOR PARAPET
– Overhang possible from 0.40m to 1.25m approx.
– Finishing on demand : camera bracket or other sensors
– Stability adapted to camera constraints
– To be mounted on a vertical plane
